Raydafon Technology Group Co.,Limited

Raydafon Technology Group Co.,Limited was established in 2002 and is located in Hangzhou City.  It is one of the major manufacturers and exporters of hydraulic cylinders in China.  With high-quality products and services, we have earned a trustworthy reputation with customers from all over the world on the basis of mutual benefit.  We firmly believe that reputation and customers are our top priorities.  Through 16 years of efforts, we have won the trust of domestic and foreign customers.  At present, Jinwei hydraulic components have been exported to over 30 countries and regions including the United States, Canada, Russia, Poland, Germany, Italy, France, Austria, Brazil and Colombia.  The hydraulic cylinder is reliable in quality, stable in performance and durable.  It is completely interchangeable with the original part.  Meanwhile, through our own product designers, we can offer customized products and accept OEM orders.  We will continue to develop new products and improve our services.

about us
ISO 9001:2015 Certified CE Certified UL Recognized ✅ 20+ years experience | ✅ Exported to 30+ countries | ✅ 12 engineers
Support Customization

We have our own product designers who can provide customized products and accept OEM orders.

Superior Service

We always put customers at the center and provide personalized, efficient and considerate service experiences.

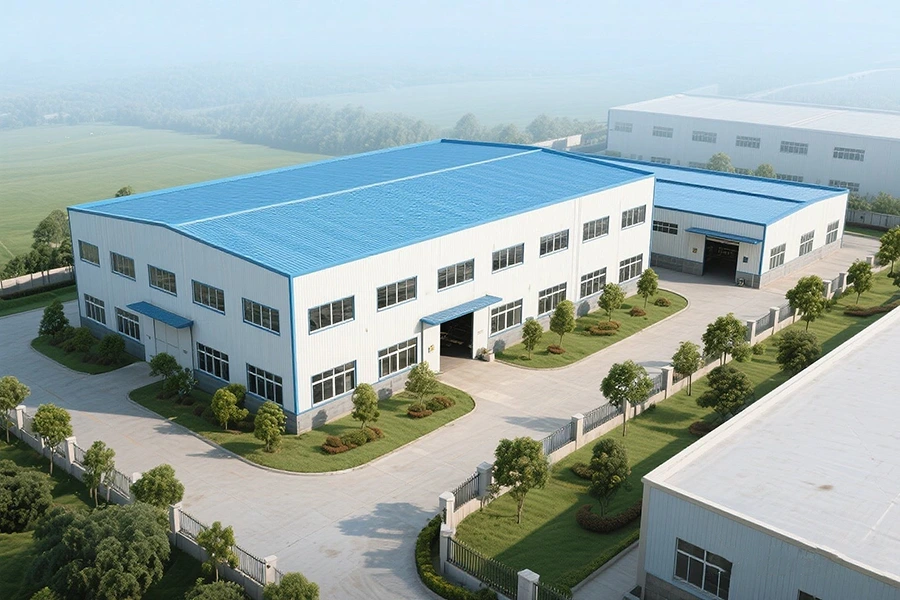

Complete Equipment

Well-equipped factories with Plastic injection molding and Punching, Stamping, CNC machining divisions.

How to Select the Right Hydraulic Cylinder

  1. Step 1: Determine required force (tons)
    Calculate using: Force (kN) = Pressure (bar) × Piston area (cm²) / 10. Our engineers can help you with this calculation.
  2. Step 2: Choose mounting style
    Common: clevis, trunnion, flange, or foot mount. Tell us your equipment interface.
  3. Step 3: Select stroke length
    Measure the distance between retracted and extended positions. Add 10-20 mm for safety margin.
  4. Step 4: Specify operating environment
    Indoor/outdoor, temperature range, corrosive media – affects seal material and rod coating choice.
  5. Step 5: Request a quote
    Send your specifications to our engineers for a free proposal and CAD drawing review.

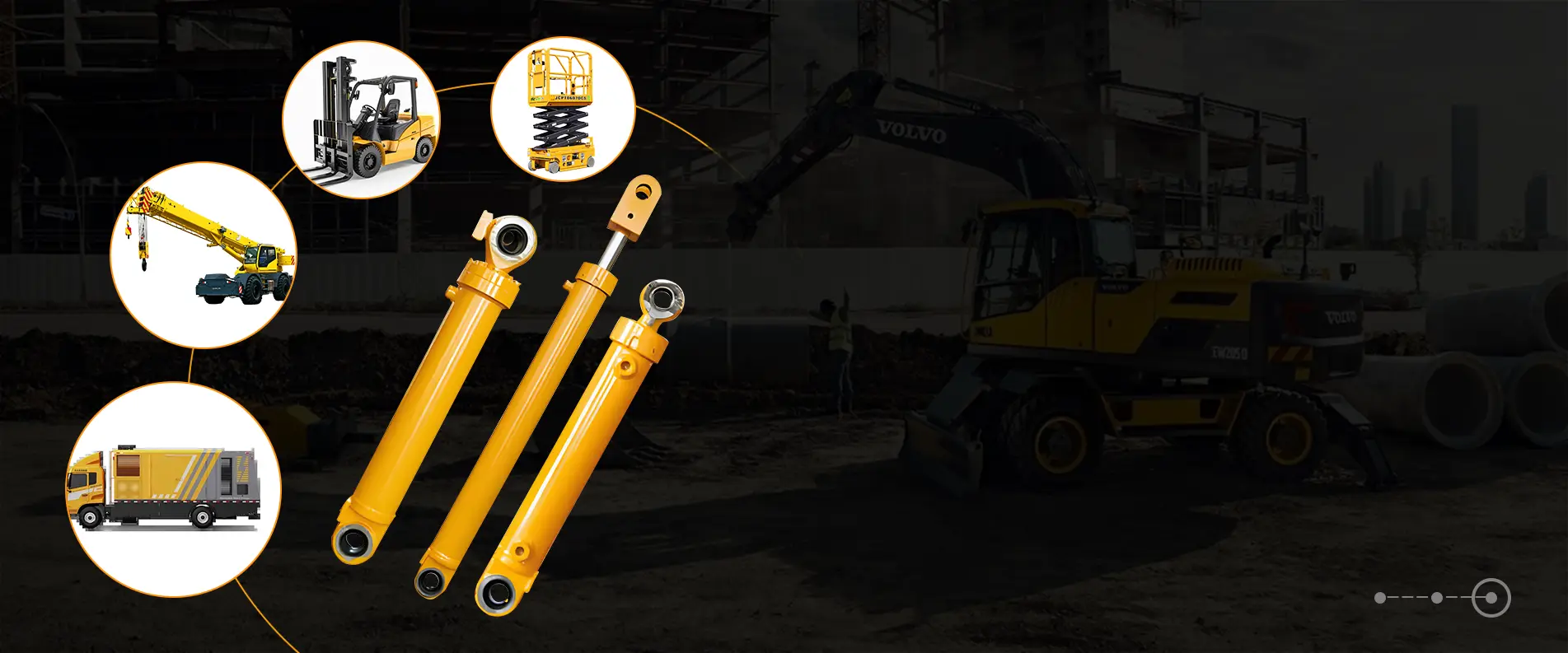

Applications

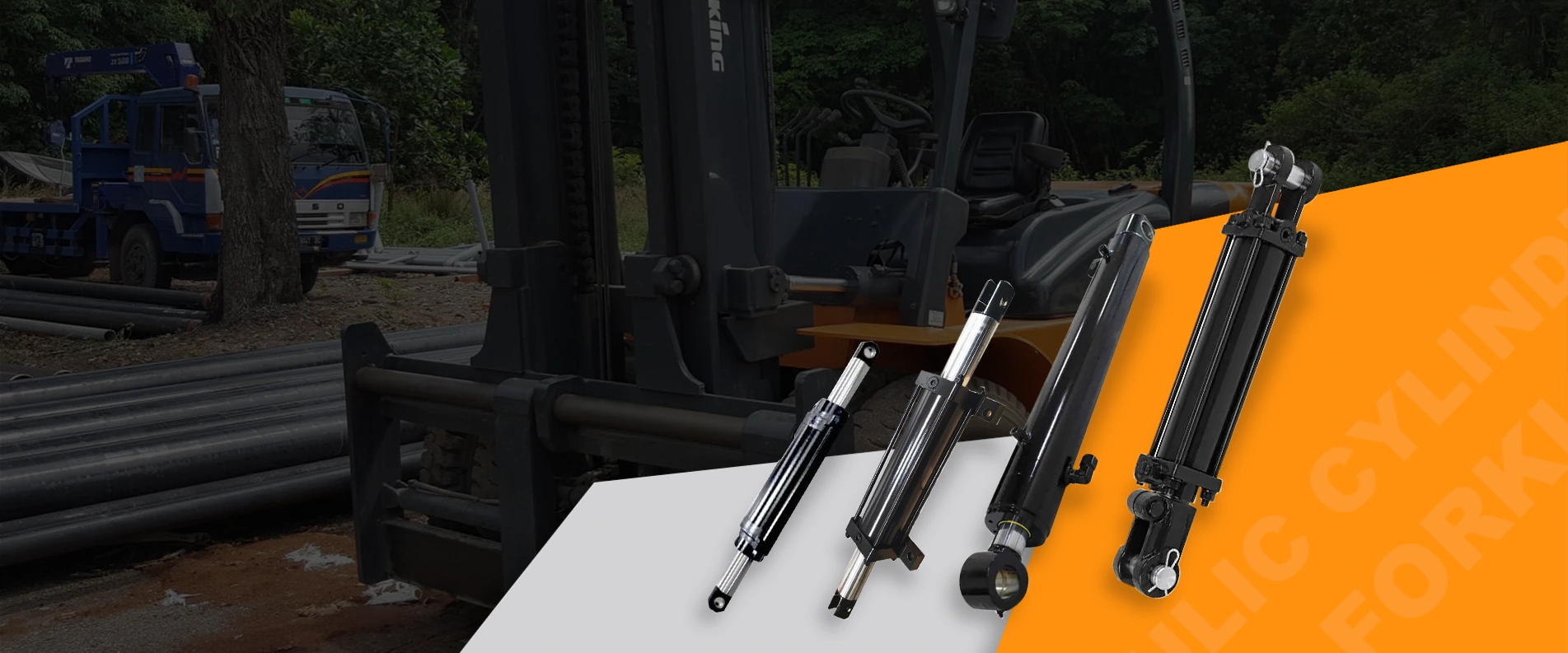

Application of Forklift hydraulic cylinders

As the core driving component for material handling, the hydraulic cylinder of a forklift directly determines the lifting efficiency, load stability and long-term durability of the forklift. Raydafon employs high-strength chromium alloy steel and multi-stage sealing technology to create high-pressure resistant and impact-resistant hydraulic cylinders, ensuring smooth operation even under frequent start-stop and high-load conditions. Designed specifically for warehousing and logistics, port handling and manufacturing, our hydraulic cylinders have passed ISO 9001 certification and are suitable for electric forklifts, internal combustion forklifts and special handling equipment.

✅ Proven performance: 1 million cycle life tested, 50% longer seal life than industry average. Trusted by forklift OEMs in Germany and USA.

View More
Application of Hydraulic cylinders for High-altitude operations

The hydraulic cylinder of the aerial work platform is a core component that ensures the stable operation and precise positioning of high-altitude equipment. It is specially designed for high-altitude platforms, telescopic arms and lifting systems. Adopting high-strength alloy steel and precise sealing technology, it ensures stable thrust and fatigue resistance even under extreme heights and complex working conditions. Our hydraulic cylinders have undergone rigorous load testing and anti-corrosion treatment, making them suitable for scenarios such as construction, power maintenance, and fire rescue. They feature both rapid response and low maintenance requirements.

View More

News

2026-01-09
What are the common uses of heavy duty vehicles?
Heavy-duty vehicles are commonly used to transport large cargo, handle construction and industrial tasks, and perform specialized services in sectors like logistics, agriculture, and public works.
2025-05-23
The operating pressure range of forklift hydraulic cylinders
The hydraulic cylinder of a forklift is one of the key components of a forklift.
2025-05-23
The usage method of hydraulic cylinders
​The usage methods of hydraulic cylinders mainly include installation, operation, maintenance and troubleshooting, etc.
2025-05-23
The structure and principle of hydraulic cylinders
A hydraulic cylinder is usually composed of main parts such as the rear end cover, cylinder barrel, piston rod, piston assembly and front end cover.
2026-05-25
What are the main parts of a drive shaft?
A drive shaft typically consists of a shaft tube, universal joints, and a slip yoke, with some designs also including a center support bearing. These components work together to transmit torque from the transmission to the differential while accommodating angular movement and length changes.
2026-05-22
What is a universal joint and how does it work?
A universal joint is a mechanical coupling that transmits rotary power between two shafts not aligned in a straight line, allowing for angular misalignment while maintaining constant velocity rotation.
2026-05-15
What are the benefits of a drive-by-wire steering system?
Explore how drive-by-wire steering enhances vehicle performance, safety, and design flexibility by replacing mechanical linkages with electronic controls.
2026-05-14
How to install a universal coupling correctly?
Learn the step-by-step process to properly install a universal coupling, ensuring correct alignment, secure fastening, and optimal performance in mechanical systems.
2026-05-07
What causes vibrations in a PTO shaft assembly?
This article examines the common factors that lead to vibrations in a power take-off shaft assembly, such as misalignment, imbalance, worn components, and insufficient lubrication.
2026-04-29
How to replace a tube yoke on a driveshaft?
Learn to safely replace a tube yoke on a driveshaft with simple steps and essential tools.
2026-04-21
What are splined yokes and how do they work?
Splined yokes are specialized mechanical components designed to connect rotating shafts while allowing limited axial movement. They feature interlocking teeth or grooves (splines) that transmit torque efficiently and maintain alignment, commonly used in automotive and industrial applications for smooth power transfer and flexibility.
2026-04-20
What are common problems and failures with PTO universal joints?
Common issues with PTO universal joints include wear, misalignment, and lubrication failures.
