Specification Of Lubrication pump ---Speedway:
Item:

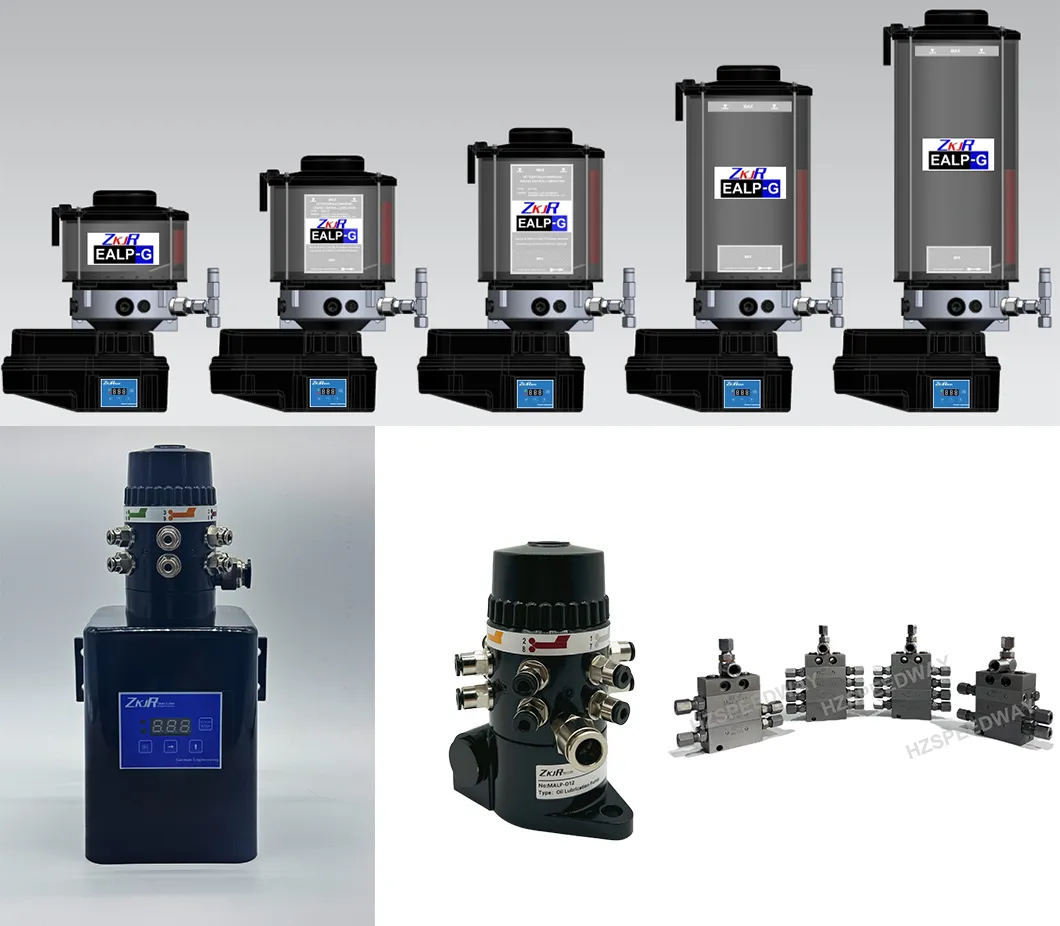

| Name | EP-EALP-O2 Series Electric Driven Oil Piston Pumps Lubrication Pump Replacement for BEKA 10138503/AZU |
| Output rate | Max. 0.06 cm³ per stroke one outlet |
| Regulation of Output | 1 - 6 individual outlets 7 - 12 outlets in pairs |
| Input speed | Std 22 r.p.m (11/42/80 r.p.m OPT) |
| Operating pressure | max. 15bar |
| Suction height | max. 2000 mm |
| Lubricant | Oil |
| Viscosity range | 25 - 1500 mm² /s |
| Temperature range | Medium -30 - 70 °C Ambient -35 - 40 °C |
| No. of outlets | Max. 12 |
| Outlet type | See order key |
| Sense of rotation | Optional |
| Weight | 2.3kg |
| Varnish | Black(pump body and housing) |
| Degree of protection | IP 6K9K |
Motor:
| Drive | DC motor |
| Operational voltage | 12/24V DC |
| Nominal current | max. 1.5/1.3A |
| Stall current | max. 4.0/4.5A |
| Speed (=pump speed) | Std 22 r.p.m (11/42/80 r.p.m OPT). |
| Electrical connection | see dimensional drawing |
Control Unit:
| Lubrication Time | 1-29 Min |
| Cycle Time | 0.5-8 Hour |
We developed and produced many tractor spare parts for European/Jananese Tractors .
Tractor Model we can supply: B1500/1400,B5000,B6000, B7000, TU1400, TX1400, TX1500, YM F1401, YM1400 ETC.
The parts for example: Gearboxes, Tyres, rim Jante, Kit coupling KB-TX 3 point linkage. Exhaust pipe Steering wheel. Kit coupling YM F14/F15, gear shaft, PTO shaft, PTO cardan, key, regulator ect.
Most of the spare parts are with stock. If you are interested in, please feel easy to contact me.
Other relevant parts for cars or machinery we have made in our workshop are as follows:
Drive shaft parts and assemblies,
PTO GEARBOX,
Universal joint parts and assemblies,
PTO drive shafts,
Spline shafts,
Slip yokes,
Weld yokes,
Flange yokes,
Steering columns,
Connecting rods,
etc.
